3D Object

Sample and reference external 3D models within the node graph for hybrid parametric and imported workflows.

Ask AI about this page

1 node in this group

The 3D Object group provides a node for sampling imported 3D models within the parametric graph. This bridges external modeling tools with BeeGraphy's node-based workflow - import a pre-made model and combine it with parametric geometry, transforms, and Boolean operations.

Nodes

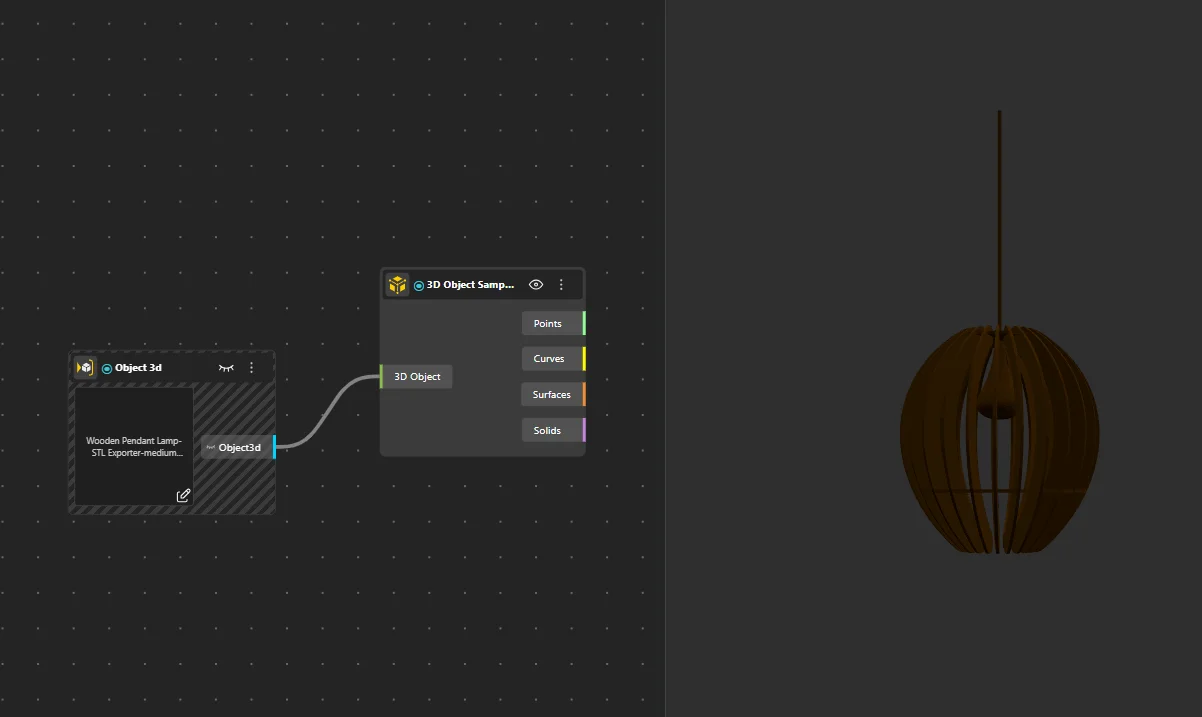

3D Object Sampler

Behavior

References an imported 3D object and outputs it as geometry within the node graph. The Sampler always requires a 3D Object input - it cannot function without one connected. The only valid node that can feed this input is the Object 3D node from the Input group, which holds the uploaded 3D file - supports .stl, .step, and .iges formats only. Once sampled, the geometry can be transformed, arrayed, combined with parametric shapes, or rendered like any other geometry in the graph.

Inputs

3D Object

Outputs

Points, Curves, Surfaces, Solids

Pairs With

Object 3D

Solids

Boolean Operations
